| Push-To-Connect Coupler, 1/4" Body-Female Pipe Thread | |||||
| CODE | SIZE | L | D | L1 | SW |
| 23K-02F | 1/4" | 54 | 23 | 23 | 19 |
| 23K-03F | 3/8" | 54 | 23 | 23 | 20 |
| 23K-04F | 1/2" | 58 | 23 | 27 | 24 |
Quick-connect couplings
Material:
"Universal industrial coupling with European profile"
High flowrate valve for best flow performance and low pressure drop
Single-hand operation
Operating Temperature:-20°C to +100°C
Operating Pressure: 0-35 bar
Interchangeability: Rectus 26, Rectus 1600/1625, Cejn 320, JWL 520
Detailed parameters

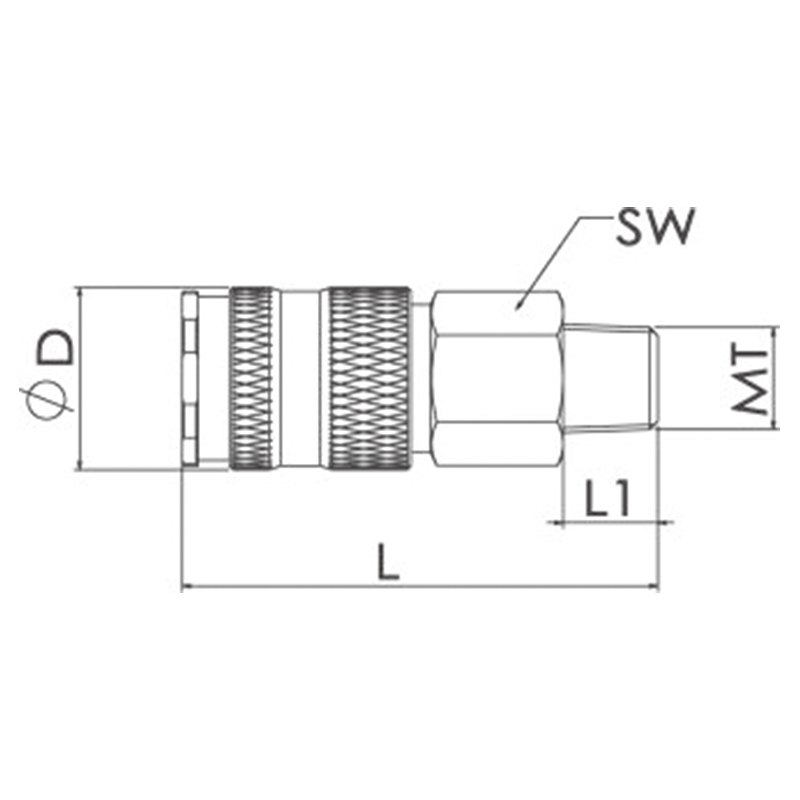

| Push-To-Connect Coupler, 1/4" Body-Male Pipe Thread | |||||
| CODE | SIZE | L | D | L1 | SW |
| 23K-02M | 1/4" | 59 | 23 | 10.5 | 19 |
| 23K-03M | 3/8" | 59.5 | 23 | 11 | 19 |
| 23K-04M | 1/2" | 62 | 23 | 13.5 | 21 |
| Push-To-Connect Coupler, 1/4" Body-Standard Hose Barb | |||||
| CODE | SIZE | L | D | L1 | SW |
| 23K-02H | 6MM | 73 | 23 | 25 | 19 |
| 23K-03H | 8MM | 73 | 23 | 25 | 19 |
| 23K-04H | 10MM | 73 | 23 | 25 | 19 |
