Material:
Pneumatic Quick Couplers are devices used to connect tubing and tools in pneumatic systems and offer many features and benefits. They have quick-connect features that allow them to connect and disconnect pipes and tools in a short time, thereby increasing work efficiency. Pneumatic Quick Couplers often feature lightweight, easy-to-use designs that are easy to carry and operate, making them more convenient on the job site. These joints have high sealing properties to ensure that gas does not leak at the connection parts and maintain stable operation of the system. They also offer good durability, using high-quality materials and precision manufacturing to withstand prolonged use and repeated connections. Pneumatic Quick Couplers are available in a variety of models and sizes to meet the needs of different pneumatic systems and tools. In terms of safety, the design takes into account operational safety to ensure that no accidents occur during connection and use, and to ensure the safety of operators and equipment. These quick couplings have good compatibility and can be seamlessly connected with various pneumatic tools and piping systems, providing flexible use. Pneumatic Quick Couplers is an efficient, convenient, safe and multi-functional connection device, suitable for various pneumatic system application scenarios.
Detailed parameters
Push To Connect, Female Pipe Thread | |||||
CODE | SIZE | L | D | L1 | SW |
22SF-2 | 1/4" | 51 | 26 | 16.5 | 19 |
23SF-2 | 3/8" | 51 | 26 | 16.5 | 20 |
24SF-2 | 1/2" | 53 | 26 | 18 | 25 |
Push To Connect, Male Pipe Thread | |||||
CODE | SIZE | L | D | L1 | SW |

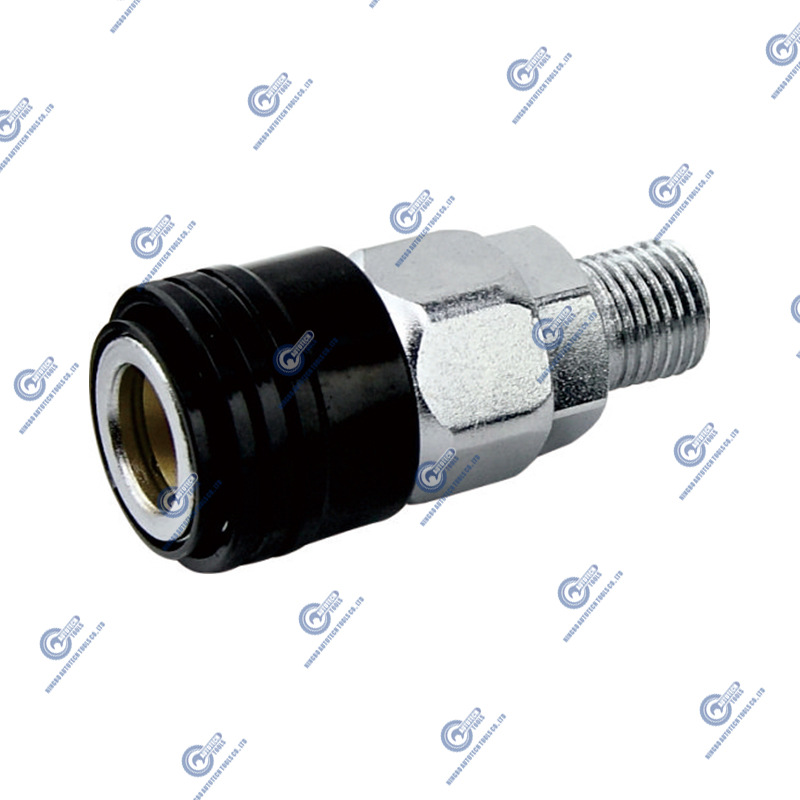

22SM-2 | 1/4" | 54.5 | 26 | 12 | 19 |
23SM-2 | 3/8" | 56.5 | 26 | 14 | 19 |
24SM-2 | 1/2" | 59.5 | 26 | 16 | 22 |
Push To Connect, Standard Hose Barb | |||||
CODE | SIZE | L | D | L1 | SW |

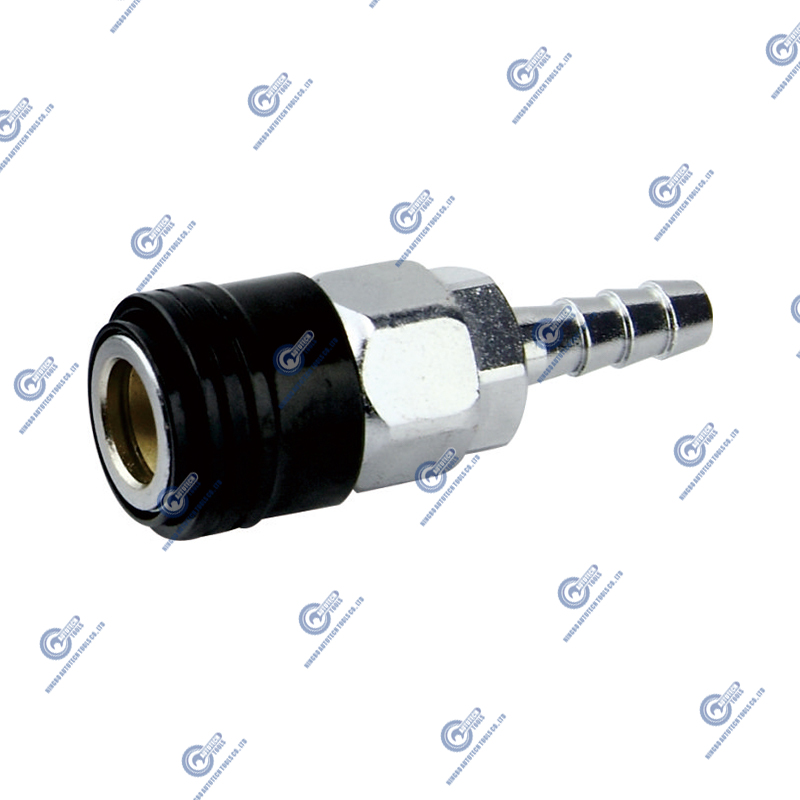

22SH-2 | 1/4" | 70.5 | 26 | 28 | 19 |
23SH-2 | 3/8" | 70.5 | 26 | 28 | 19 |
24SH-2 | 1/2" | 73.5 | 26 | 31 | 19 |
Push To Connect, Hose Connection | |||||
CODE | SIZE | L | D | L1 | SW |
22SP-2 | 5*8 | 58 | 26 | 14 | 19 |
23SP-2 | 6.5*10 | 61 | 26 | 16 | 19 |
24SP-2 | 8*12 | 63.5 | 26 | 20 | 19 |
