Material:
Universal Mental Tire Screw-On Valves are high-performance valves specially designed for car tires. These valves are made of high-quality metal materials, such as stainless steel or aluminum alloy, and have durability and corrosion resistance. This material selection ensures the valve's stable performance under various harsh climates and road conditions, maintaining stable performance for a long time and providing long-lasting protection for the tire. Universal Mental Tire Screw-On Valves adopt a threaded installation structure, making the installation process simple and convenient. Simply secure the valve threads to the tire air hole, no additional tools or special skills are required. This design not only saves installation time but also reduces possible errors and problems during the installation process, improving installation efficiency. The valve has sealing performance, which can effectively prevent tire pressure leakage, extend the service life of the tire, and improve the vehicle's fuel efficiency and driving safety. Its stable threaded connection and tight sealing structure can effectively prevent gas leakage and ensure that the tire always maintains a normal inflated state.
*Special valves screw onto Michelin spud.
*Complete with cap and core
*Single bent or triple bent styles

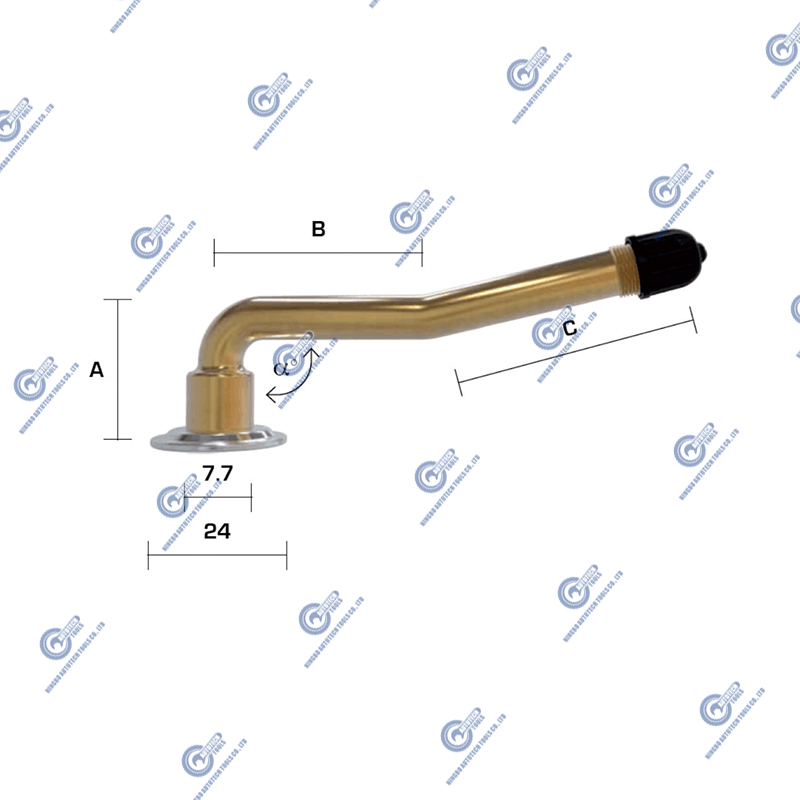

Detailed parameters
Etrto No | A | B | C | α° |
V3-04-1 | 20 | 32 | 37 | 90 |
V3-04-2 | 20 | 38 | 41 | 90 |
V3-04-3 | 20 | 59 | 39 | 94 |
V3-04-4 | 20 | 74 | 40 | 94 |
V3-04-5 | 20 | 76 | 47 | 90 |
V3-04-6 | 20 | 86 | 47 | 90 |
V3-04-7 | 20 | 30 | 29 | 90 |
V3-04-8 | 20 | 36 | 43 | 90 |
V3-04-10 | 20 | 47 | 52 | 90 |
V3-04-11 | 20 | 47 | 62 | 90 |
V3-04-15 | 20 | 2 | 38 | 90 |
V3-04-16 | 20 | 38 | 50 | 90 |
V3-04-17 | 20 | 65 | 45 | 94 |
V3-04-18 | 20 | 72 | 45 | 90 |
V3-04-19 | 20 | 80 | 45 | 90 |
V3-04-21 | 20 | 83 | 57 | 94 |
V3-04-22 | 20 | 28 | 47 | 90 |
V3-04-23 | 20 | 48 | 47 | 94 |
V3-04-24 | 20 | 58 | 47 | 94 |
V3-04-25 | 20 | 80 | 47 | 94 |
V3-04-26 | 20 | 99 | 47 | 99 |
